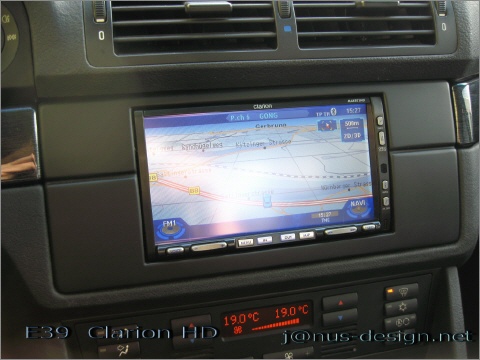

E39 Doppel-DIN

This totally handmade Double-DIN Bezel fits for all today known double-din devices.
Next we did a lot of d-din installations and are familiar with the following devices
For devices, which are not listed below, please click on "individual" and send us your panel-size.
We will produce an individual sized bezel for you

all Alpine IVAs
all Pioneer AVICs AVHs
all Kenwood DDX, DNX
all JVCs
all CLARIONs
all ZENECs no mc292,sorry too large
all MAQMAs
all ECLIPSE AVNs
all Panasonic STRADAs
individual give us 1 week time to size it for you
devices that dont fit : Eonon E1026, E1091, Zenec mc292

For devices which are not in list above, click "individual" and
send us the sizes. Max. High must not exceed 103mm panel high

Construction:

made out of 350 Gramm polymer, tightened with carbon-rovings inlets
polymer calmed,hardened in a special way, resistend up to 212 F° temperature
revolving gap 1mm !! to D-Din device
surface totally free of errors, 2K mat deepback thermo brushed
panel cutout in steps, individual for your device from 174x99mm up to 181x104mm possible
Therefore 2 different panel sizes with differnet cutout sizes in stock
inner frame without offset, so depth adjustment due various panel thickness possible
therefore perfect flush of bezel and device at all corners, no nasty overlap of thick displays
Bezel totally decoupled of the device and stress-free
no creaking, clattering or scouring at brushed surface
bezel backside 4 adjust pins inside, ideal adaption for additional E39 Mounting-Kit (adjust pin-grommet-system)
rearside totally flat for adaption of individual mounting holders
you get a 17-paged install instruction,step-by-step, with all details
